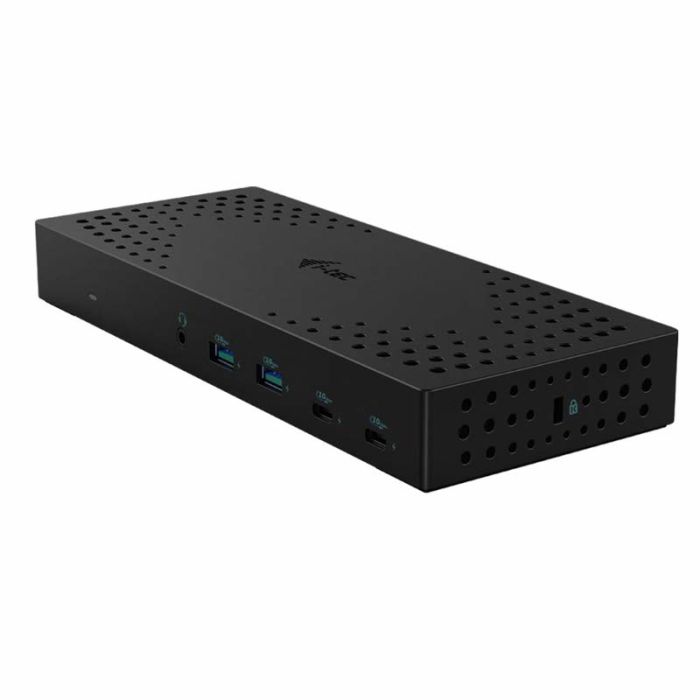

i-Tec USB 3.0 USB-C Thunderbolt 3x 4K Docking Station Gen 2 + Power Delivery 100W
Out of stock
Short description
The i-Tec USB 3.0 USB-C Thunderbolt 3x 4K Docking Station Gen 2 + Power Delivery 100W allows you to use up to 3 external displays. The docking station features 13 different ports. This is for the people who demand the most from their laptops.
Please note: this docking station supports 3 monitors for the Macbook's with M1 and M2 chip and only 2 monitors for other Notebooks.
Product dimensions: 22.3 x 9.2 x 3 cm
Our service
Pay easily with credit card, PayPal or Apple Pay.
14-day withdrawal period for returns, hassle-free.
4.6/5 customer rating by Trusted Shops
Description
i-Tec USB 3.0 USB-C Thunderbolt 3x 4K Docking Station Gen 2 + Power Delivery 100W
The i-Tec USB 3.0 USB-C Thunderbolt 3x 4K Docking Station Gen 2 + Power Delivery 100W is a multifunction adapter that provides your Macbook with more connections. Ideal when you want to use up to 3 external displays, set up a wired internet connection or connect peripherals. Thanks to the power delivery function, you can charge your laptop via a USB-C cable (up to max 100W). In addition, this docking station features an integrated network port for connecting to the LAN network, USB ports and audio and microphone support.
The dock can be used with almost all notebooks as it supports connection to all common ports: USB 3.0, USB-C and Thunderbolt” 3/4, while supporting all common current operating systems.
Connecting 3 displays to Macbook's with an M1 and M2 chip
It's a problem we often hear about. You have a Macbook with an M1 or M2 chip and would like to connect multiple displays. Unfortunately, the M1/ M2 chip only supports one display/monitor. By using this docking station from i-Tec you can connect three monitors to your Macbook with M1/ M2 chip. The docking station is equipped with a special video card. If you want to use two or three monitors you can connect them via the Display Port and / or HDMI input on the docking station. The HDMI and Display Port actually use the built-in video card required for Macbook's with M1 and M2 chip (DisplayLink technology). The docking station is certified by Apple and therefore works seamlessly with your Macbook M1/ M2.
However, connection to three monitors is only possible if the laptop has a Thunderbolt 3/4 port or a USB-C port that supports video transfer (USB-C DP Alt mode). When connected to a notebook with USB 3.0 port, only two monitors are supported.
Monitor resolution when connected to DP and HDMI
Guest device with support for DisplayPort 1.2:
- 1 monitor - 1x DisplayPort → up to 4K/60Hz
- 1 monitor - 2x DP → up to 5K/60Hz*
- 1 monitor - 1x HDMI 1/2→ up to 4K/60Hz
- 1 monitor - 1x HDMI 3* → up to 4K/30Hz (or up to 1080p/120Hz)
- 2 monitors - 1x Display Port/HDMI 1/2+ 1x Display Port/HDMI 1/2→ up to 2x 4K/60Hz
- 2 monitors - 1x Display Port/HDMI 1/2+ 1x HDMI 3* → up to 4K/60Hz and 4K/30Hz
- 3 monitors - 1x Display Port/HDMI 1/2+ 1x Display Port/HDMI 1/2+ → up to 2x 4K60Hz + HDMI 3* up to 1x 4K30Hz
Guest device with support for DisplayPort 1.4:
- 1 monitor - 1x DisplayPort → up to 4K/60Hz
- 1 monitor - 2x DP → up to 5K/60Hz*
- 1 monitor - 1x HDMI 1/2→ up to 4K/60Hz - 1 monitor - 1x HDMI 3* → up to 4K/60Hz (or up to 1440p/144Hz)
- 2 monitors - 1x Display Port/HDMI 1/2+ 1x Display Port/HDMI 1/2→ up to 2x 4K/60Hz
- 2 monitors - 1x Display Port/HDMI 1/2+ 1x HDMI 3* → up to 4K/60Hz and 4K/60Hz
- 3 monitors - 1x Display Port/HDMI 1/2+ 1x Display Port/HDMI 1/2+ 1x HDMI 3* → up to 3x 4K/60Hz
* 5K resolution is only supported by Windows
Details max resolution:
- 4K - 60 Hz (single display)
- 4K - 60 Hz (dual display)
- 4K - 60 Hz (triple display)
Other connections + cables
- 1x USB 3.0, USB-C or Thunderbolt” 3/4 for connecting the hub
- 2x DisplayPort
- 3x HDMI port
- 4x USB 3.2 port (10 Gbps) with support for fast charging
- 2x USB-C 3.2 (10 Gbps) with support for fast charging (15W)
- 1x Ethernet GLAN RJ-45 port (DisplayLink DL-6950) supports network speeds of 10/100/1000 Mbps
- 1x 3.5mm Audio/ Mic port
- 1x power input - ON/OFF switch to turn the docking station on and off
* The HDMI 3 port only works when the dock is connected to a ThunderboltTM or USB-C port (with support for DisplayPort Alt Mode)
Specifications:
- Support for Kensington lock
- 1x jack for audio and microphone
- Power Delivery: max. 100W
- LED indicator
- Compatibility with VESA mounts (for vertical mounting behind a monitor)
- USB-C cable with USB-C and USB-A adapter included (100 cm)
- OS: Windows 10/ 11, macOS, Android and Linux with the latest updates
Hardware requirements:
- Device with a free USB-A USB-C or Thunderbolt 3/4 port.
Power Delivery feature requirements:
- Device with a free USB-C or Thunderbolt™3 port with “Power Delivery” support
- When connected to a USB 3.0 port, the laptop cannot be charged
Operating system:
- Windows 10 / 11, macOS, Android 5 or later, Chrome OS R51 or later, Linux Ubuntu
